TL-207SUS-2-H

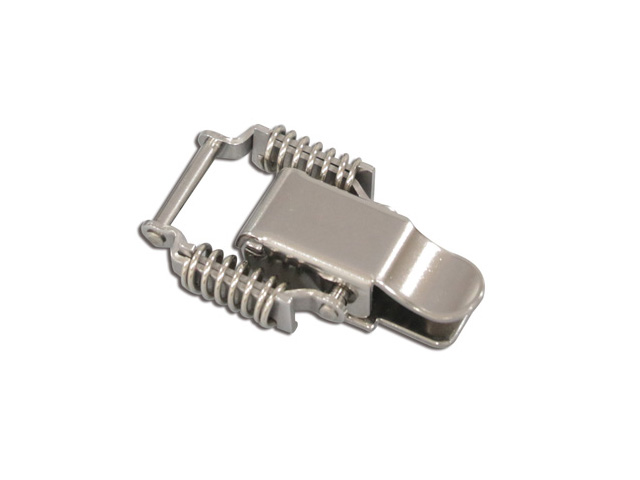

ステンレスキャッチクリップ

Tension Latch
tscapbt5.png sus.png
410(税抜)
451(税込)
数量
日本語
ENGLISH
特長
スプリングによる締付力があるステンレス製のアームキャッチです。
Characteristic
The latch is made of stainless steel.Springs help to insure tight latching.
用途
計測機器・工作機械・建設機械・車輛用等
Application
Measuring instruments / Machine tools / Construction machines / Vehicles , etc.
注意事項
TL-207SUS-2の取付ねじに座金を併用されますと、シャフト部品と干渉する恐れがあります。緩みの懸念には、ねじロックのご使用をおすすめ致します。
Note
When using washers with the mounting screws for TL-207SUS-2, there is a risk of interference with the shaft components.To avoid the risk of loosening, the use of a thread-locking adhesive is highly advisable.
■締付力
型番 締代ごとの締付力 N(kgf)
1mm 2mm 3mm 4mm 5mm
TL-207SUS-1 約98(10.0) 約132(13.5) 約172(17.5) 約201(20.5) 約226(23.0)
TL-207SUS-2 約69(7.0) 約83(8.5) 約98(10.0) 約108(11.0)
■Tightening Force
Model No. Tightening Force on each Tightening Stroke N(kgf)
1mm 2mm 3mm 4mm 5mm
TL-207SUS-1 approx.98(10.0) approx.132(13.5) approx.172(17.5) approx.201(20.5) approx.226(23.0)
TL-207SUS-2 approx.69(7.0) approx.83(8.5) approx.98(10.0) approx.108(11.0)
スクロールできます
商品名 価格(税抜) 価格(税込) 詳細・注文 タイプ 材質 締付力[N(kgf)]

ステンレスキャッチクリップ

¥680

¥748

詳細を見る
オールステンレス
キャッチクリップ
ステンレス 98(10.0)
132(13.5)
172(17.5)
201(20.5)
226(23.0)

ステンレスキャッチクリップ

¥640

¥704

詳細を見る
オールステンレス
キャッチクリップ
ステンレス 98(10.0)
132(13.5)
172(17.5)
201(20.5)
226(23.0)

ステンレスキャッチクリップ

¥430

¥473

詳細を見る
オールステンレス
キャッチクリップ
ステンレス 69(7.0)
83(8.5)
98(10.0)
108(11)

ステンレスキャッチクリップ

¥410

¥451

詳細を見る
オールステンレス
キャッチクリップ
ステンレス 69(7.0)
83(8.5)
98(10.0)
108(11)
