THA-132SUS-3の高さ違い品です。
ニギリ部分は操作し易くする為、高くしてあります。
THA-211のステンレス化により、荷重が向上しております。
特注対応でピッチ・高さの変更が可能です。
-
-
-

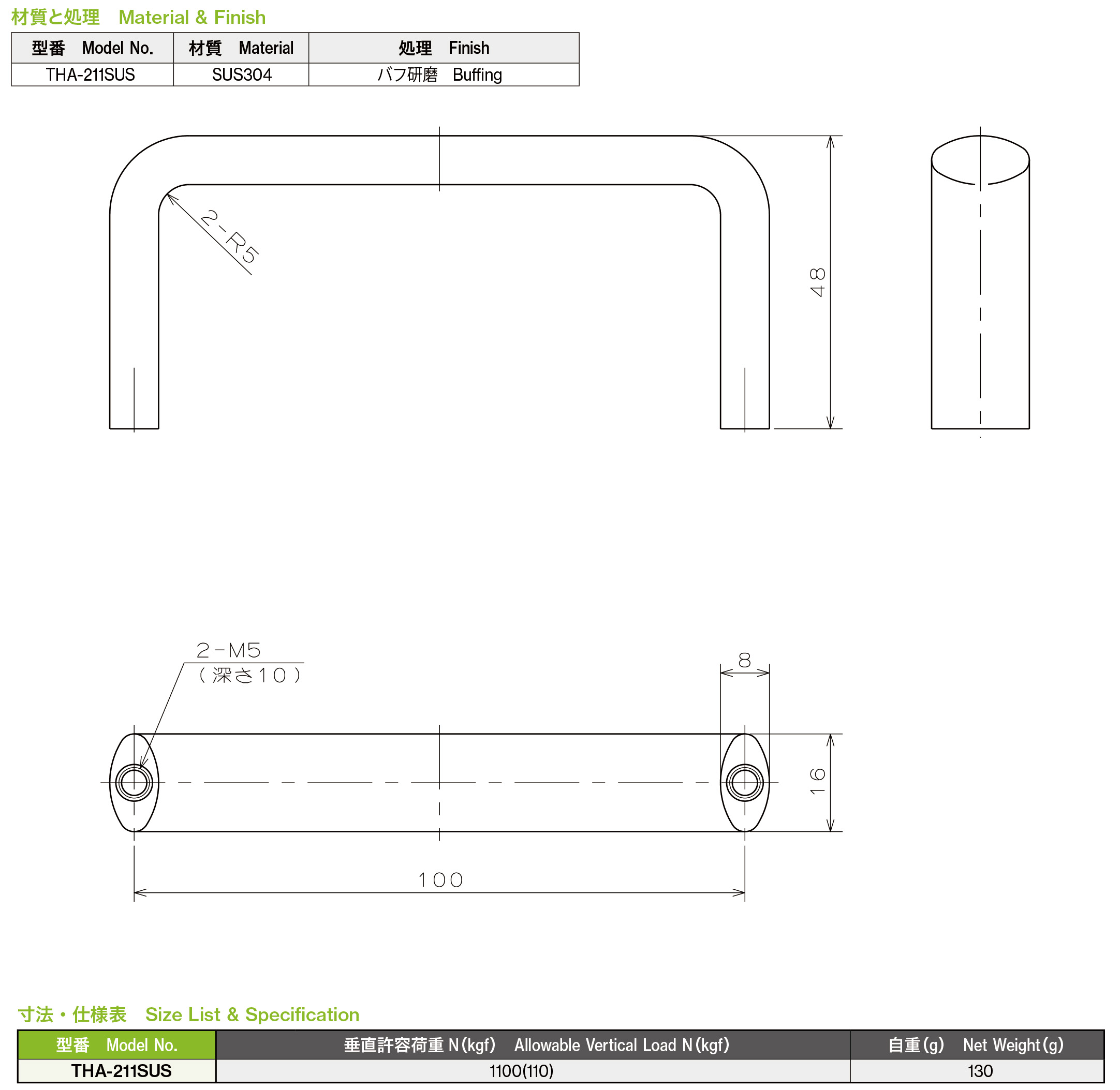

仕様図
カタログPDFを見る
※文中の（頁）は「栃木屋総合カタログ 71」の頁となります。
CADデータダウンロード
2D
DXF
3D
STP
IGS
X_T
SAT
PDF

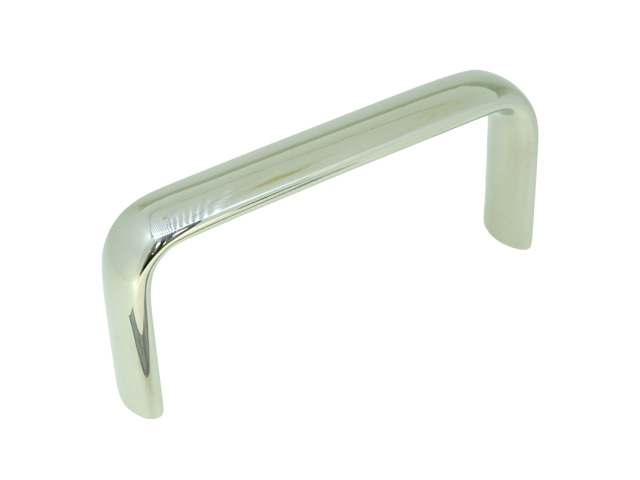

THA-211SUS
ステンレス楕円取手(Ｕ字型)
Grab Handle
¥970（税抜）
¥1,067（税込）
数量：
日本語
ENGLISH
特長
Characteristic
A variant of THA-132SUS-3 with a different height.
The height of the handle has been increased to improve operability.
Available in various sizes to suit different equipment and applications.
The stainless steel version of THA-211 offers increased load capacity.
Custom specifications are available, including adjustable pitch and height dimensions.
The height of the handle has been increased to improve operability.
Available in various sizes to suit different equipment and applications.
The stainless steel version of THA-211 offers increased load capacity.
Custom specifications are available, including adjustable pitch and height dimensions.
用途
計測機器・通信機・工作機械等
Application
Measuring instruments / Telecommunication devices / Machine tools, etc.
